The Options dialog box

Introduction

This section describes the Options dialog box in the UNICORN Manager.

How to open the dialog box

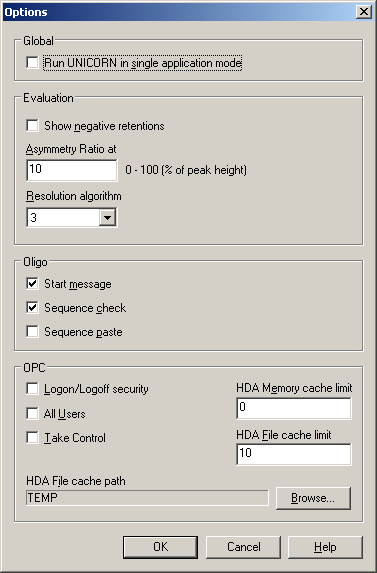

In the UNICORN Manager, choose Administration:Options... to open the Options dialog box.

There are four fields in the dialog box which are described individually below.

The Global field

Select the Run UNICORN in single application mode check box to activate UNICORN single application mode on the computer.

Explanation

Single application mode means that UNICORN will be the only application available when it is running. The setting is done on a per computer basis and will apply to everyone who starts UNICORN on the specific computer.

To achieve single application mode, UNICORN is started in a separate desktop. When UNICORN is terminated, Windows switches back to the original desktop.

The Evaluation field

The table below describes the commands of the Evaluation field.

Command name

Function

Show negative retentions

Select the check box to show negative retentions in the Evaluation module. This means that curve data before the injection point will be displayed, that is before time or volume is zero. Deselect it to hide curve data before the injection point.

Asymmetry ratio at

The value specifies the height, in percent of peak height, where the asymmetry calculation is performed. See Appendix B3 of the UNICORN User Reference Manual for more information.

Resolution algorithm

Select the resolution algorithm to be used. See Appendix B3 of the UNICORN User Reference Manual for more information.

The Oligo field

The table below describes the function of each checkbox when it is selected.

Note: These functions are only valid for oligosynthesis systems.

Checkbox name

Function

Start message

Inserts a start message in the method

Sequence check

Checks a sequence for errors

Sequence paste

Allows paste of sequence characters from another program

The OPC field

The table below describes the commands of the OPC field:

Command name

Function

Logon/Logoff security

Enables the OPC security interface

All Users

Displays all users in Data Access and Historical Data Access

Take Control

Automatically tries to gain control of the system when OPC starts

HDA Memory cache limit

Limits Historical Data Access in-memory cache to the specified number of bytes.

Range: 0 - 1 000 000 000 [bytes]

1 - 100 => 100 [bytes], minimum cache size

0 = unlimited cache size

HDA File cache limit

Indicates maximum number of result files in cache.

Range: 0 - 100

0 = cache not used

HDA File cache path

The folder where cached result files are stored
