How to print active chromatograms

Introduction

This section describes how to print the chromatograms that are open in the Evaluation module.

Before you print

Open all chromatograms that you want to print in the Evaluation module before you proceed.

How to print

The table below describes how to print active chromatograms.

Step

Action

1

  • Select the File:Print menu command.

or

  • Click the Print icon.

Result: The Print Chromatograms dialog box opens.

2

Select print formats and layout options.

3

Click Preview.

Result: The Customise Report window opens.

4

  • Verify that the layout is correct.

  • Click Edit Mode to make changes, e.g. change the order of the chromatograms. Click Preview to return to preview mode.

  • Click Exit to return to the Print Chromatograms dialog box.

5

Click OK.

The Print Chromatograms dialog box

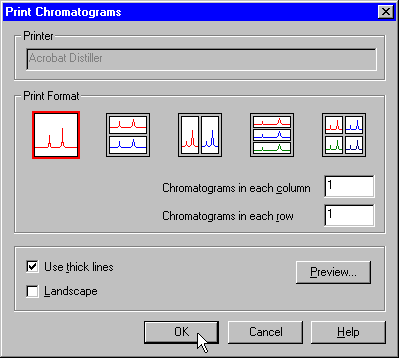

This is an illustration of the Print Chromatograms dialog box.

Note: The selected print format is outlined in red.

2005-06-15
