Curves

Introduction	This section is a short description of the Curves system settings.

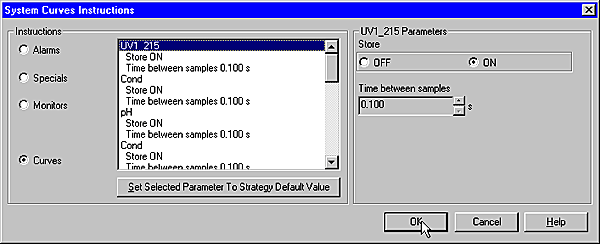

The Instructions dialog box	The illustration below shows the Instructions dialog box with the Curves instructions selected.

Curve settings

The curve settings determine which monitor signals that will be stored as curves in the result file. Verify that Store:ON is set in the Instructions dialog box for all signals that are to be stored.

Warning: If a curve is set to Store:OFF, data from the specific monitor cannot be displayed in the curves window during a process run. The data will not be recorded in any way.

Store and Time between samples

The table below describes the function of the two curve settings.

Setting	Function
Store (OFF/ON)	This setting determines whether the curve data is stored or not.
Time between samples	This setting determines with which frequency curve data is recorded. It does not affect the reading frequency of the actual monitor. Default value is the shortest possible time between samples.
