How to add method instructions
|
|
|
|
|
Instruction
|
The table below
describes how to add a method instruction in the Text Instructions Editor:
|
Step
|
Action
|
|
1
|
Select a block in the Text pane,
and display the instructions within the block.
|
|
2
|
Select an instruction line in the block. Make sure
that the selected instruction line is in the block, not the call
to the block.
|
|
3
|

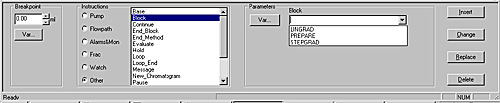

Open the Instruction box if
it is not already displayed (View:
Panes). Do the following:
-
Set the desired breakpoint
in the Breakpoint field.
-
Choose the instruction type and the instruction
in the Instructions field.
For basic help on each instruction, click the instruction and press
<F1>.
-
Type values for instruction parameters in the Parameters fields. If a scroll
bar appears at the right side of the Parameters field,
additional parameters are required.
|
|
4
|
Click the Insert button.
Result: The instruction
will be inserted in the block
-
at the position of
the breakpoint of the new instruction, if there are no other instructions
at that breakpoint
-
immediately after the currently highlighted instruction,
if the highlight is at the same breakpoint as the new instruction
-
as the last instruction at the breakpoint, if there
are several instructions at the same breakpoint and none of these
is highlighted.
Note: Instructions
that are placed at the same breakpoint are executed simultaneously,
with the exception of Block instructions
which are executed in the sequence in which they are written.
|
|
|
|
|
|
Pause, Hold and Hold_until instructions
|
If
you use ÄKTA systems, the Pause, Hold, and Hold_until instructions
will stop execution at this breakpoint, that is, instructions following
after Pause, Hold and Hold_until at
the same breakpoint will not be executed until a Continue instruction is issued.
|
|
|
|
