How to simulate a peak fractionation

Introduction

You can create a curve that simulates a peak fractionation to test the outcome before the actual peak fractionation is run. This section describes how this is done.

How to simulate a peak fractionation

The table below describes how to simulate a peak fractionation in the Evaluation module.

Step

Action

1

Choose Operations:Simulate Peak Fractionation.

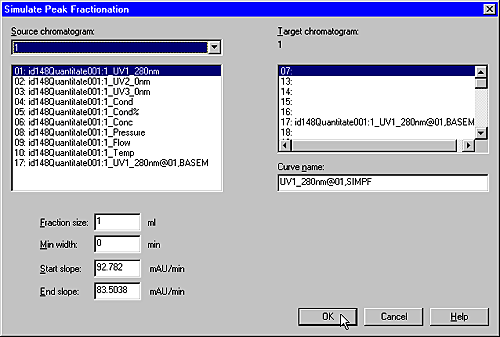

Result: The Simulate Peak Fractionation dialog box opens.

2

Select the Source Chromatogram and the curve the simulated peak fractionation is to be generated for.

3

If necessary, select a Destination Curve and type a new Curve name.

4

Type new values in the Parameters text boxes.

5

Click OK.

Result: The simulated peak fraction curve is displayed on the chromatogram.
