Overview of Run Setup

Overview of Run Setup

Introduction

To access Run Setup, either

Click the Run Setup icon on the Method Editor toolbar,

or

Select View: Run Setup.

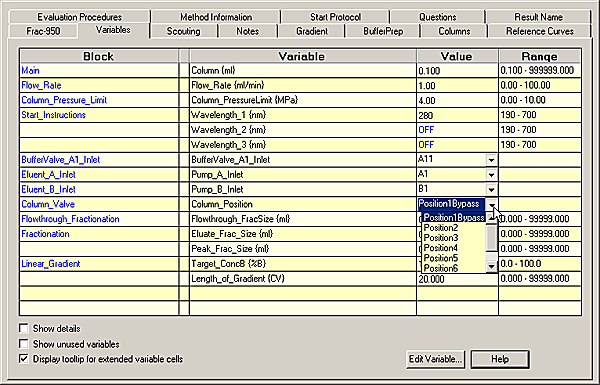

Illustration of Run Setup	The illustration below shows an example of the Run Setup with the Variables tab selected:

The tabs

The table below contains brief descriptions of the tabs of Run Setup. If you want more detailed descriptions, see sections on the respective tabs:

Tab	This tab...
Frac-950	allows the user to choose rack type and the fractionation order for the Frac-950 fraction collector.
Variables	lists all variables used in the method with their default values, organized by method block.
Scouting	shows the scouting scheme used for the method. The scouting scheme can also be set up from this tab.
Notes	shows the descriptive comments that form a part of the method documentation.
Gradient	provides a graphical overview of the block structure and eluent gradient tab in the current method.
BufferPrep	displays information about the selected buffer preparation recipe for the current method.
Columns	displays the columns used in the current method.
Reference curves	displays the reference curves that will appear in the System Control curve dialog box during the run of the current method.
Evaluation Procedures	shows the evaluation procedures that will run at the end of the current method.
Method Information	displays information about the method, such as method name, target system, and last date of change.
Start Protocol	determines which items of the Run Setup that are displayed at the start of the run.
Questions	displays the questions used in the method. Questions provide a means for entering run-specific information at the start of a run. Use this tab when you want to define questions.
Result name	specifies how the result files will be named for the results of a run, and where the result file will be saved.
