The Evaluation module

Introduction

The Evaluation module provides extensive facilities to present and to evaluate curve data.

The module window

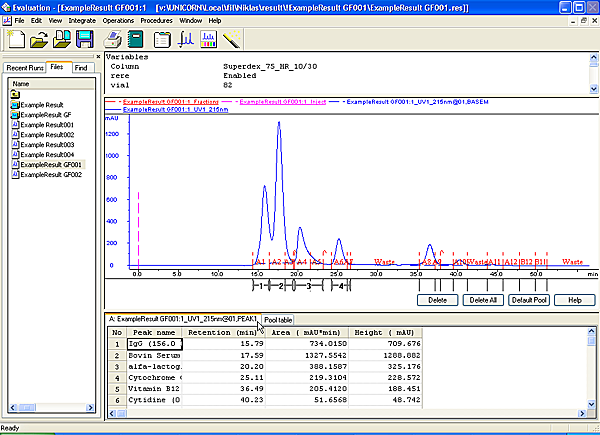

Opened result files are displayed in the Evaluation module window. See the illustration below:

Toolbar icons in the Evaluation module

The table below describes the toolbar icons in the module:

Icon

Function



The New icon opens an empty chromatogram.



The Open icon displays all available result files and result folders in the Open Result dialog box.



The Open Curves to Compare icon opens the Open Curves to Compare dialog box, which is used to select and open curves for comparison.



The Save icon saves the edited result file.



The Print icon opens the Print Chromatograms dialog box.



The Report icon opens the Generate Report dialog box, which is used to select a report format.



The View Documentation icon opens the Documentation dialog box, which is used to view and edit the result documentation.



The Peak Integrate icon opens the Integrate dialog box, which is used to select peaks to integrate in a modified peak table.



The Chromatogram Layout icon opens the Chromatogram Layout dialog box, which is used to select and format curves and display items in the chromatogram.



The Multifile Peak Compare icon opens the Multifile Peak Compare Wizard, which is used to compare peak data from different result files.
