The Flow Scheme pane

The flow scheme is a graphical representation of the chromatography system that shows the current status of the run. During a run, the flow scheme displays open flow path(s) in color and monitor signals with numerical displays.

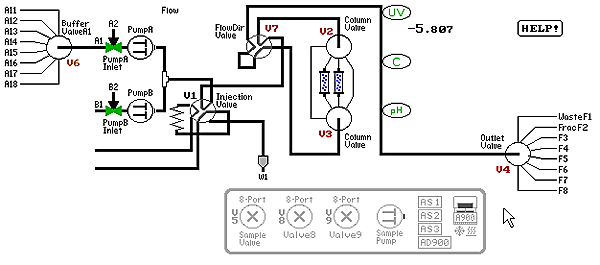

The illustration below shows an example of a flow scheme for a run:

The flow scheme can be stretched to fit the screen. To do this, right-click in the pane and select Stretch in the shortcut menu.

Some strategies link specific manual instructions directly to the components in the flow scheme pane. The components in the flow scheme that are associated with instructions are indicated with double arrows (>>). A particular component can have one or more instructions attached to it. In cases where there is more than one instruction, one of the instructions is the main instruction.

To display and select instructions:

• double-click a component

or

• right-click a component, select Instructions and an instruction in the shortcut menu.

Result: The manual instructions dialog box for the selected instruction type opens.
